How Is Visualized
MIDS W209: Information Visualization

John Alexis Guerra Gómez | john.guerra[at]gmail.com | @duto_guerra
https://johnguerra.co/lectures/MIDS_W209_Information_Visualization/04_How/
Partially based on slides from Tamara Munzner

What We Are Going to Learn

  • Marks
  • Channels
    • Ordered
    • Categorical
  • Expressivity
  • Effectivity
University Of California at Berkeley logo

Marks and Channels

Analyze Idiom Structure

Based on chart by Aravind Satyanarayan

Marks

Point
Line
Area

Channels

Channels

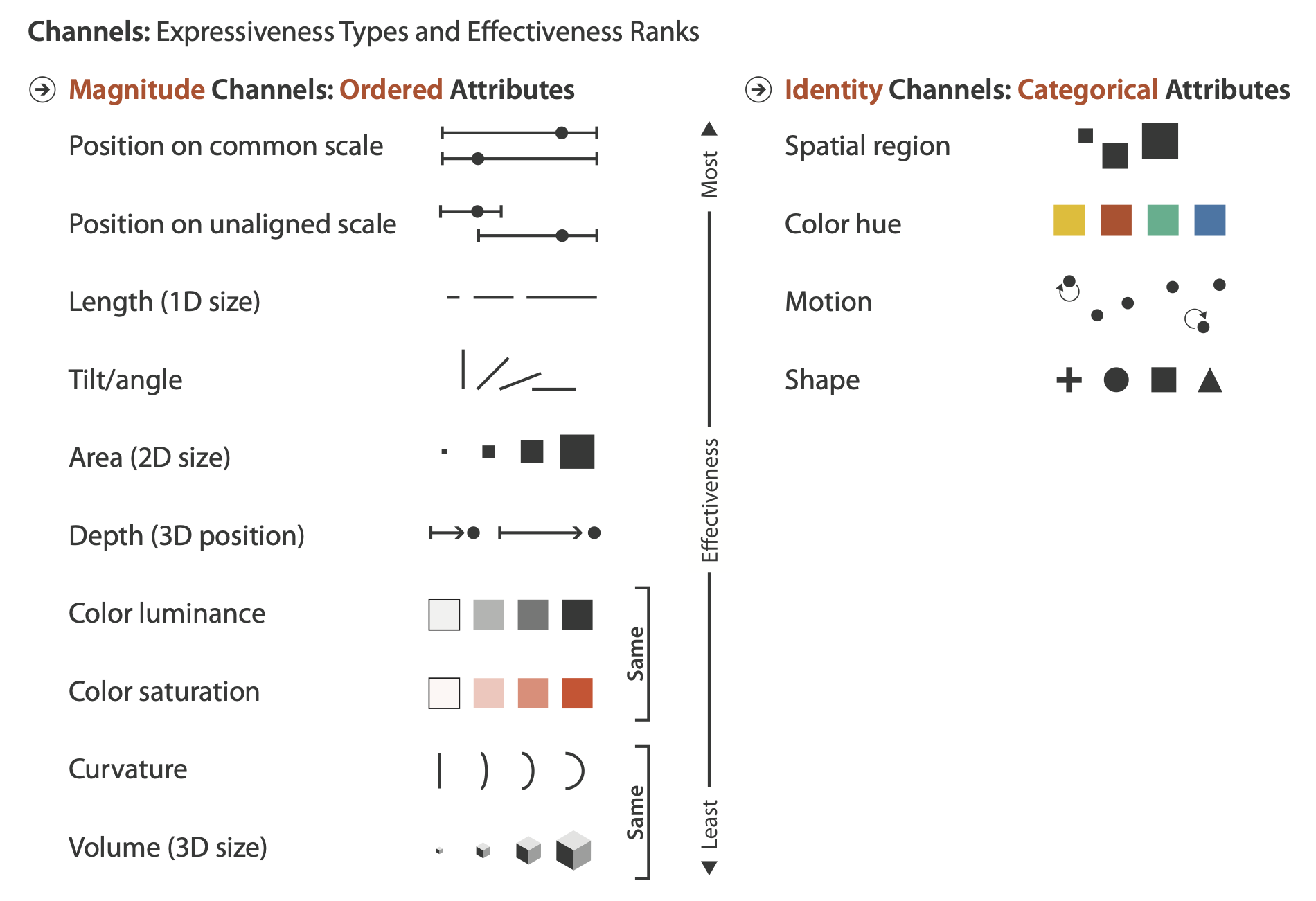

Channel Types

Channels

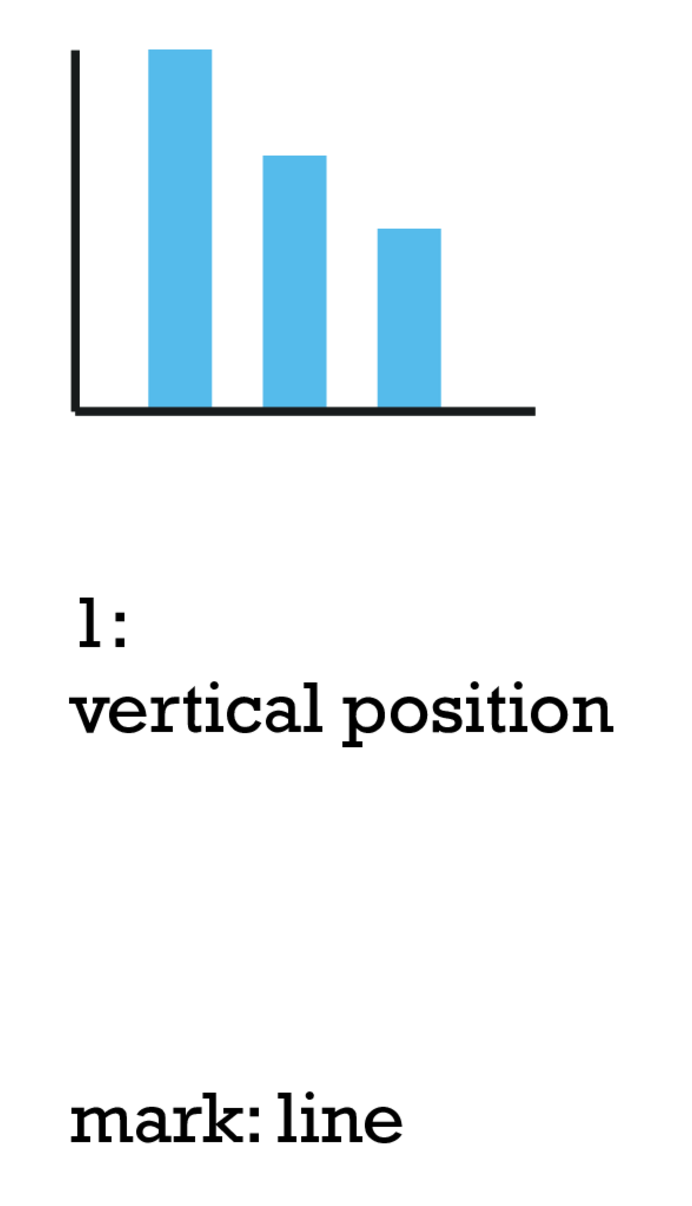

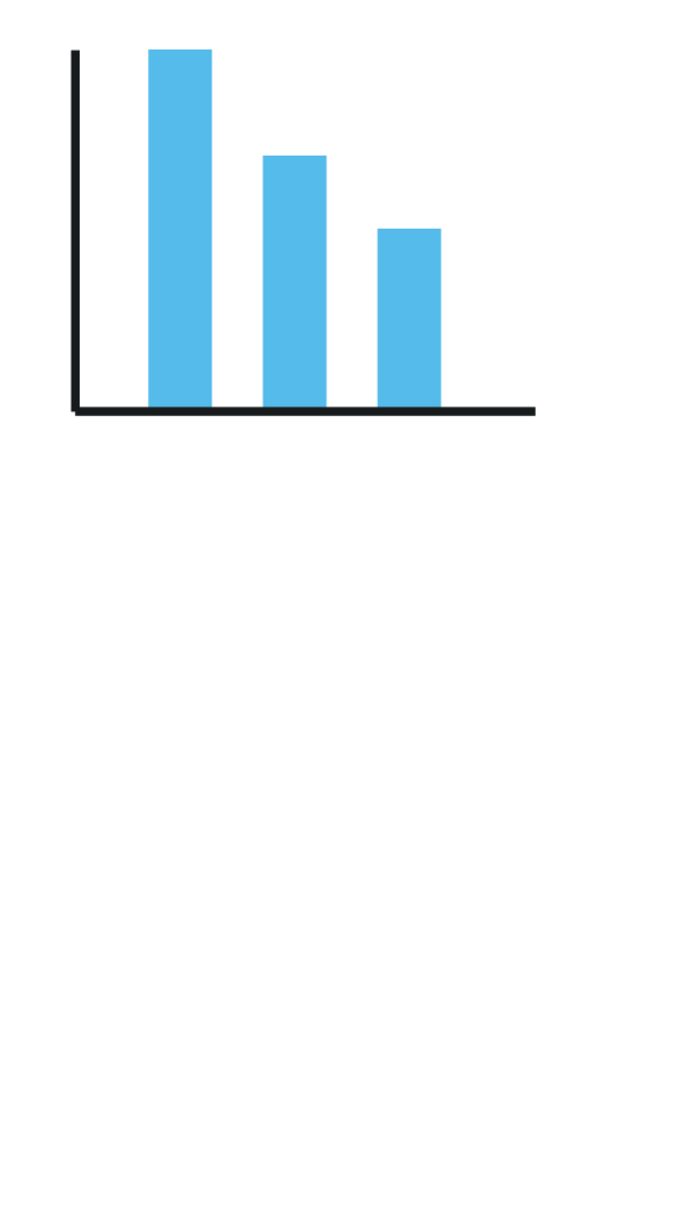

What Marks and Channels? Part I

What Marks and Channels? Part I

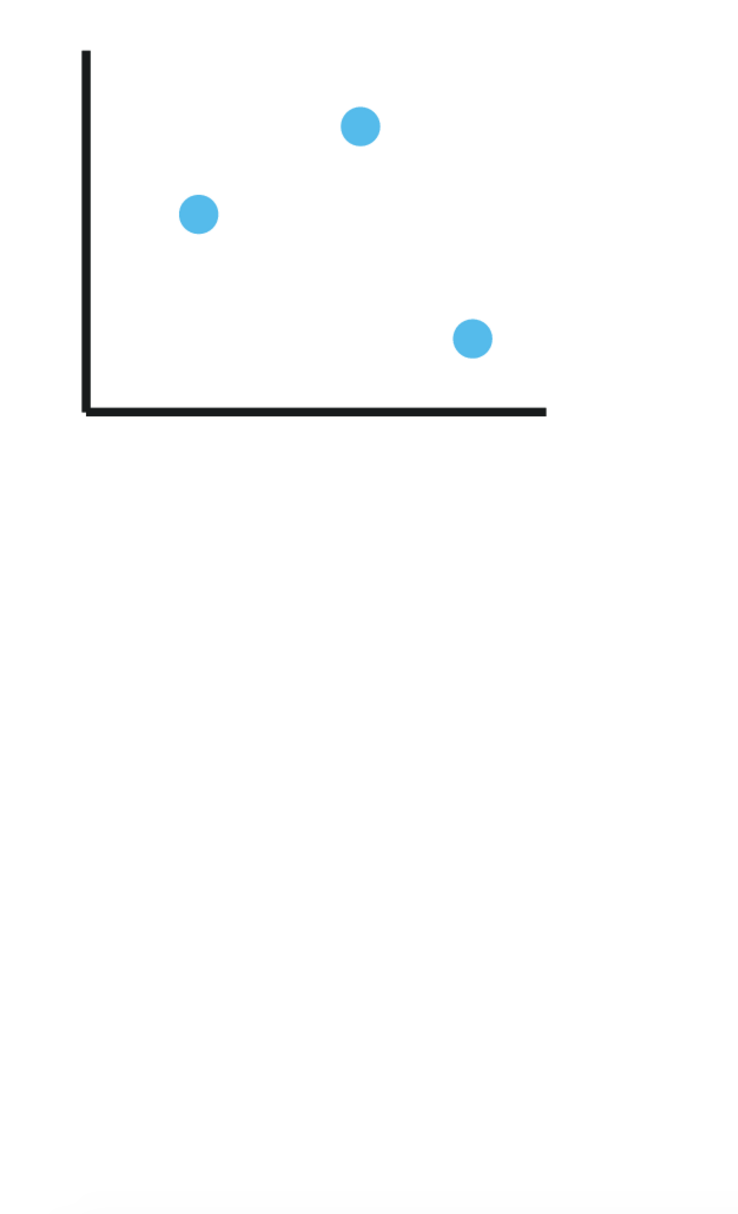

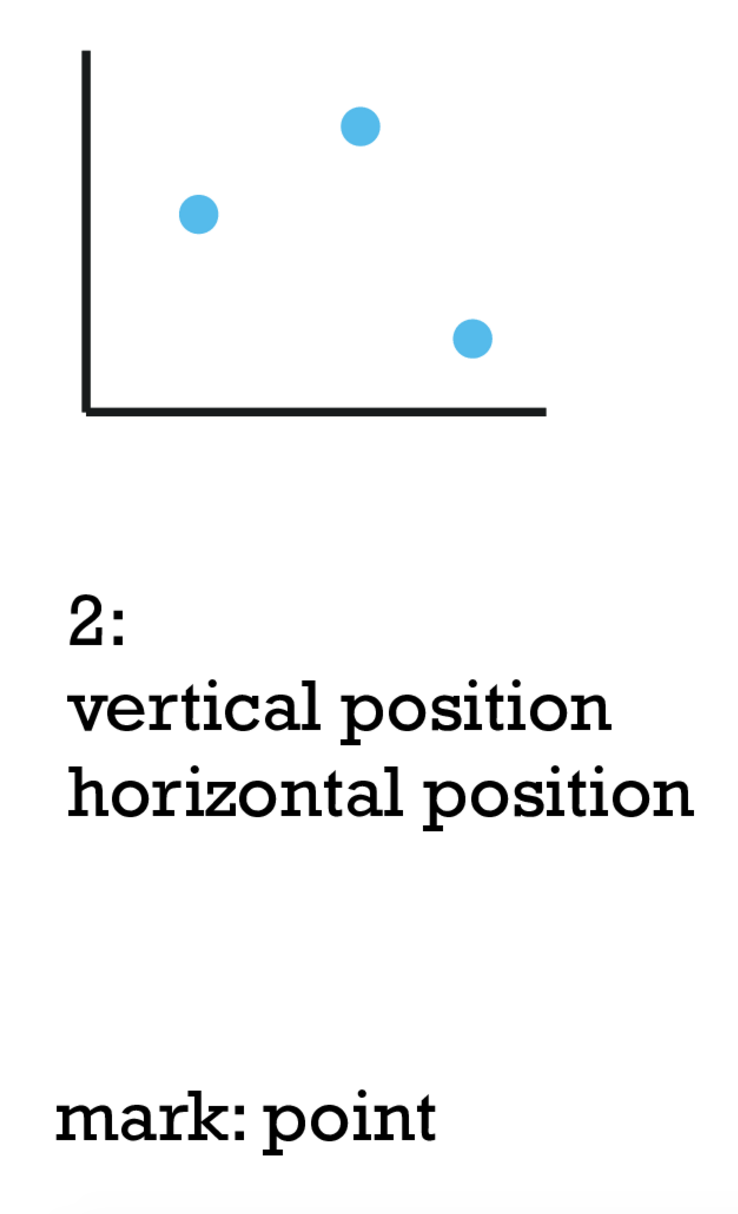

What Marks and Channels? Part II

What Marks and Channels? Part II

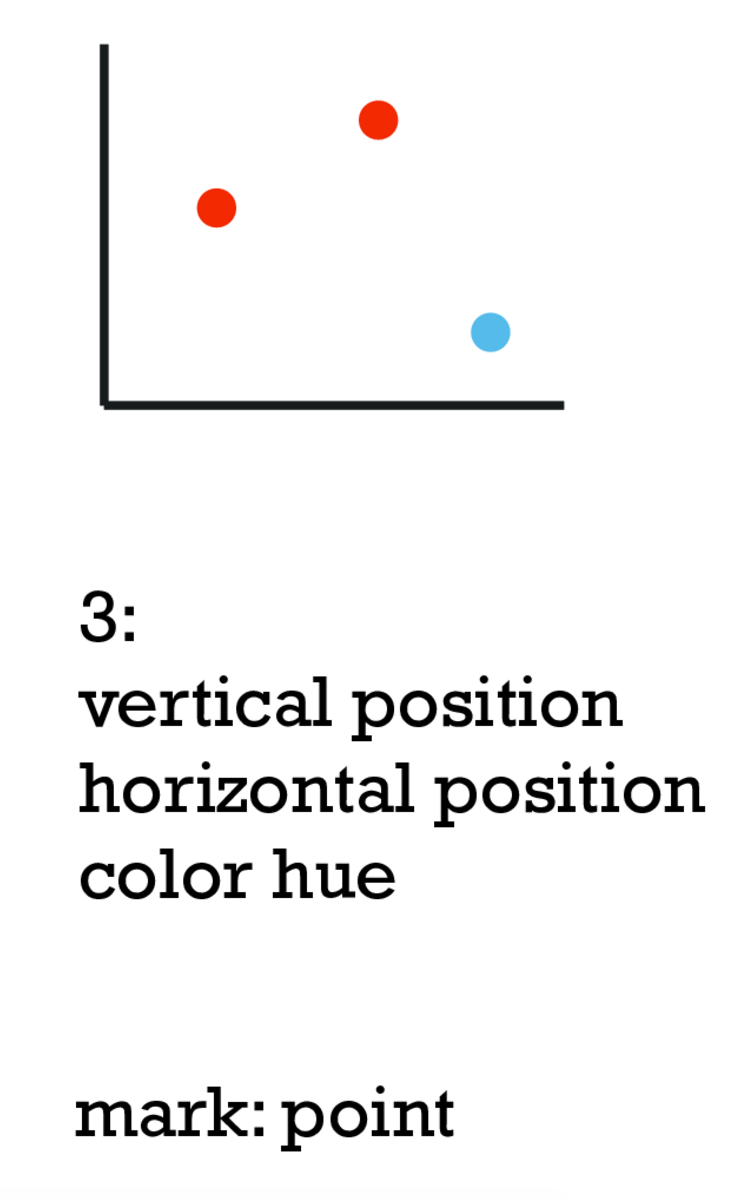

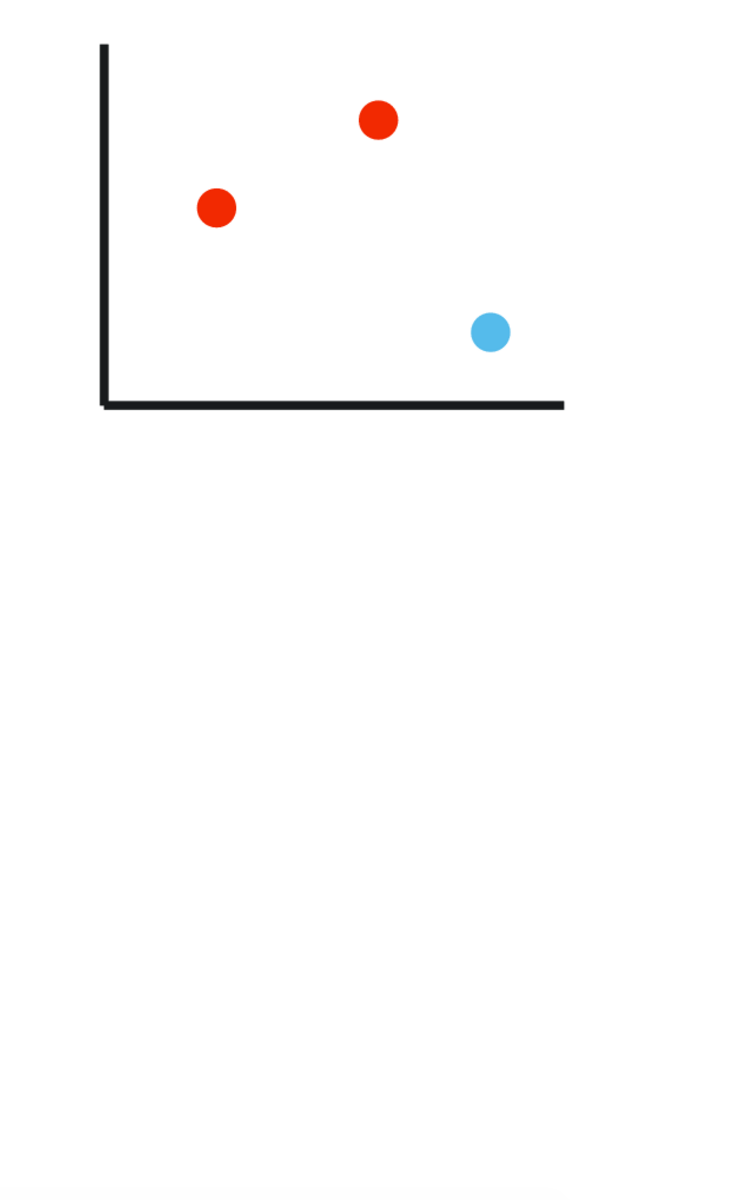

What Marks and Channels? Part III

What Marks and Channels? Part III

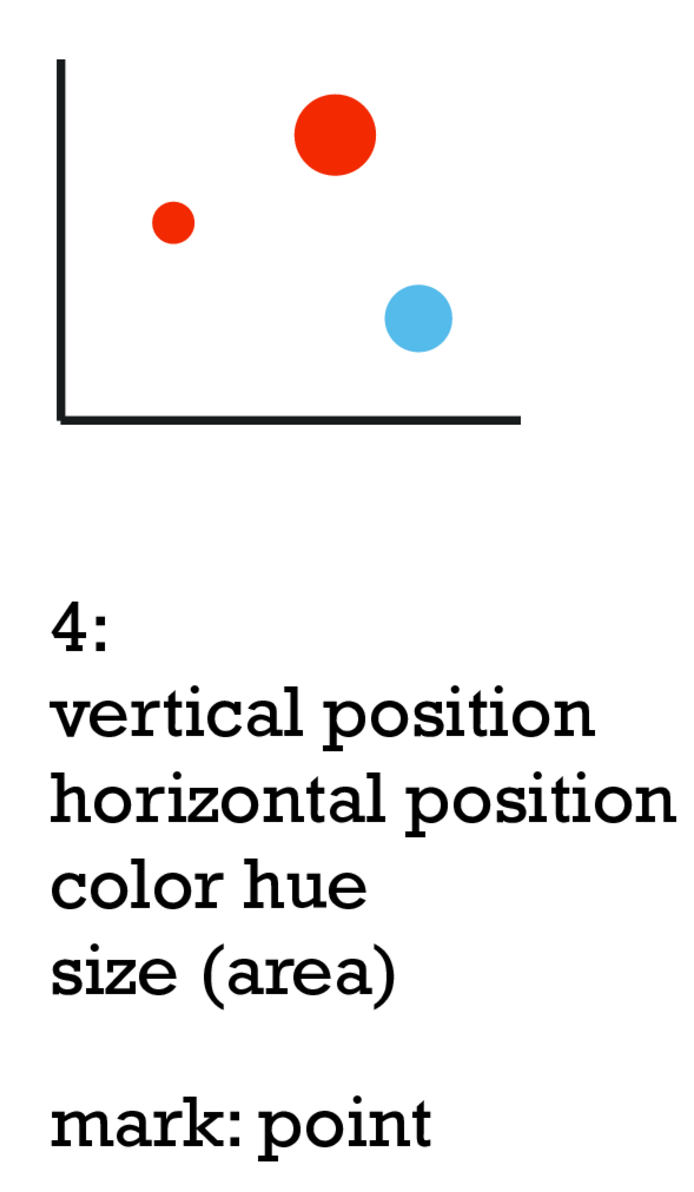

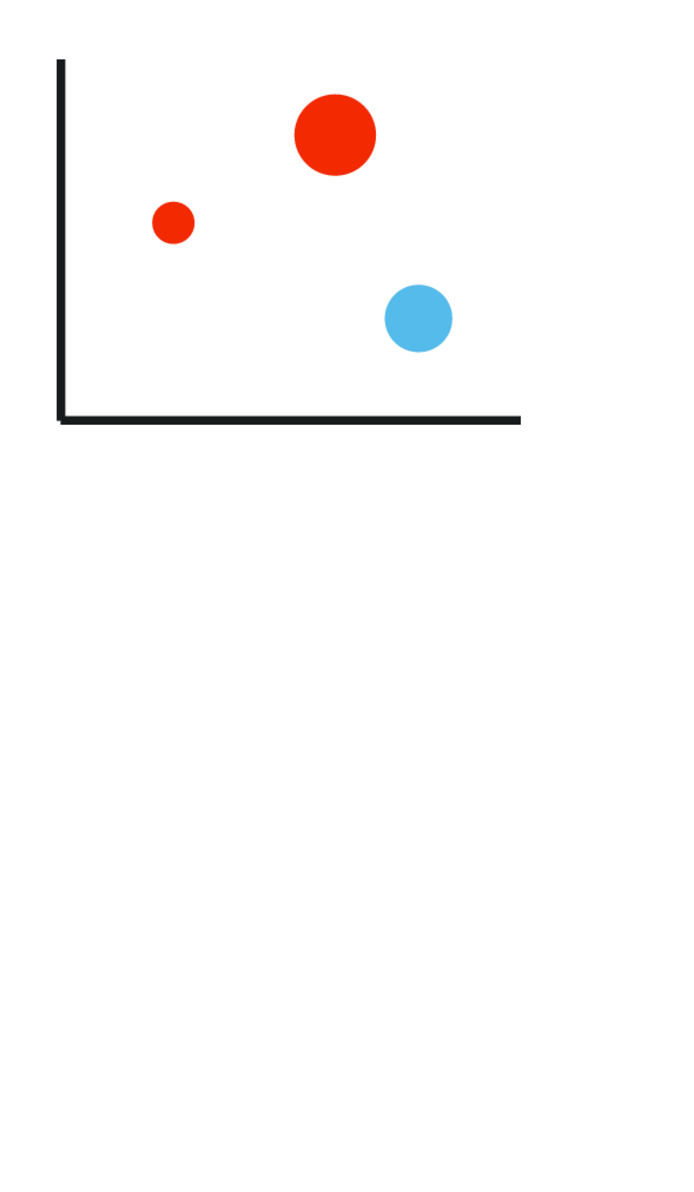

What Marks and Channels? Part IV

What Marks and Channels? Part IV

University Of California at Berkeley logo

Marks and Channels Examples

Points

  • Zero-dimensional
  • Convey position only
  • Can be size- and shape-coded

Lines

  • One-dimensional
  • Convey position and length
  • Can only be width-coded

Areas

  • Two-dimensional
  • Are fully constrained

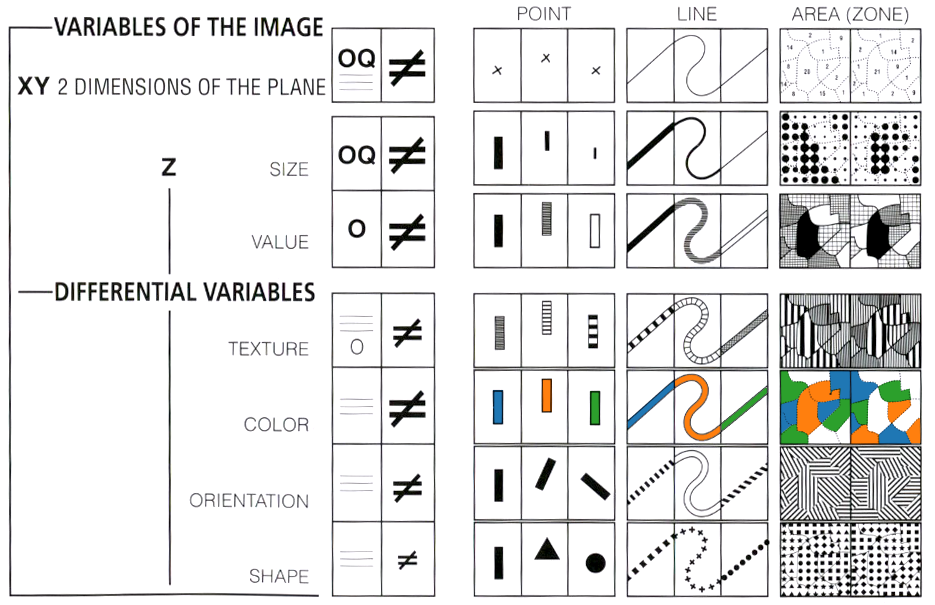

From Semiology of Graphics, colorized by mbostock.
University Of California at Berkeley logo

Effectiveness and Expressiveness

Expressiveness

  • Visual encoding should express all of—and only—the information in the dataset.
  • Ordered data should be shown in a way we perceive as ordered.
  • Match channel and data characteristics.

Effectiveness

Encode most important attributes with highest-ranked channels

[Automating the Design of Graphical Presentations of Relational Information. Mackinlay. ACM Trans. on Graphics (TOG) 5:2 (1986), 110–141]

Where Does the Ranking Come From?

  • Accuracy
  • Discriminability
  • Separability
  • Popout

Accuracy: Fundamental Theory

Accuracy: Visualization Experiments

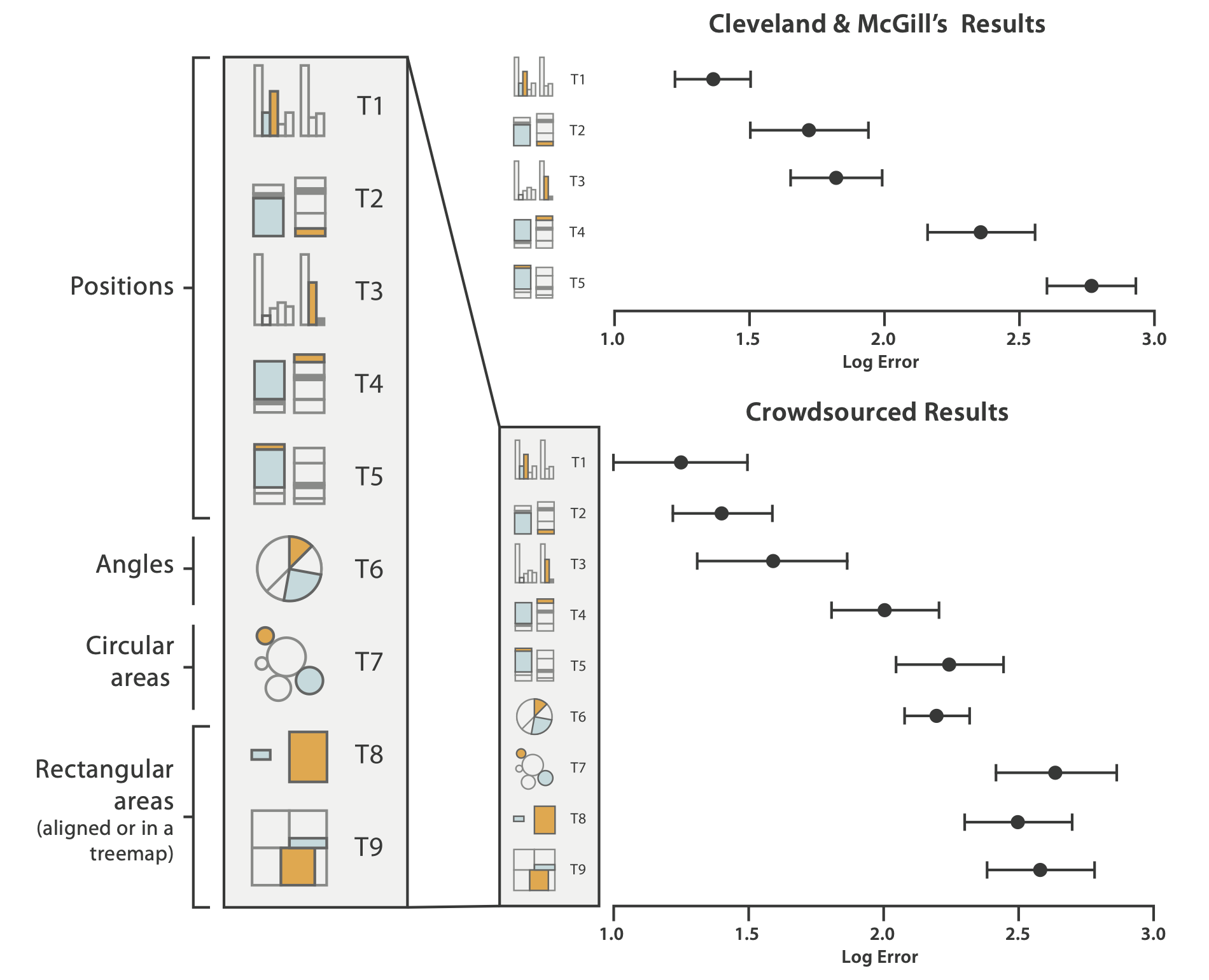

Vis experiments results showing best accuracy
Crowdsourcing Graphical Perception: Using MechanicalTurk to Assess Visualization Design
University Of California at Berkeley logo

Effectiveness Tips

Discriminability

How many steps are usable?
Line width: Not many 🤷🏼‍♂️

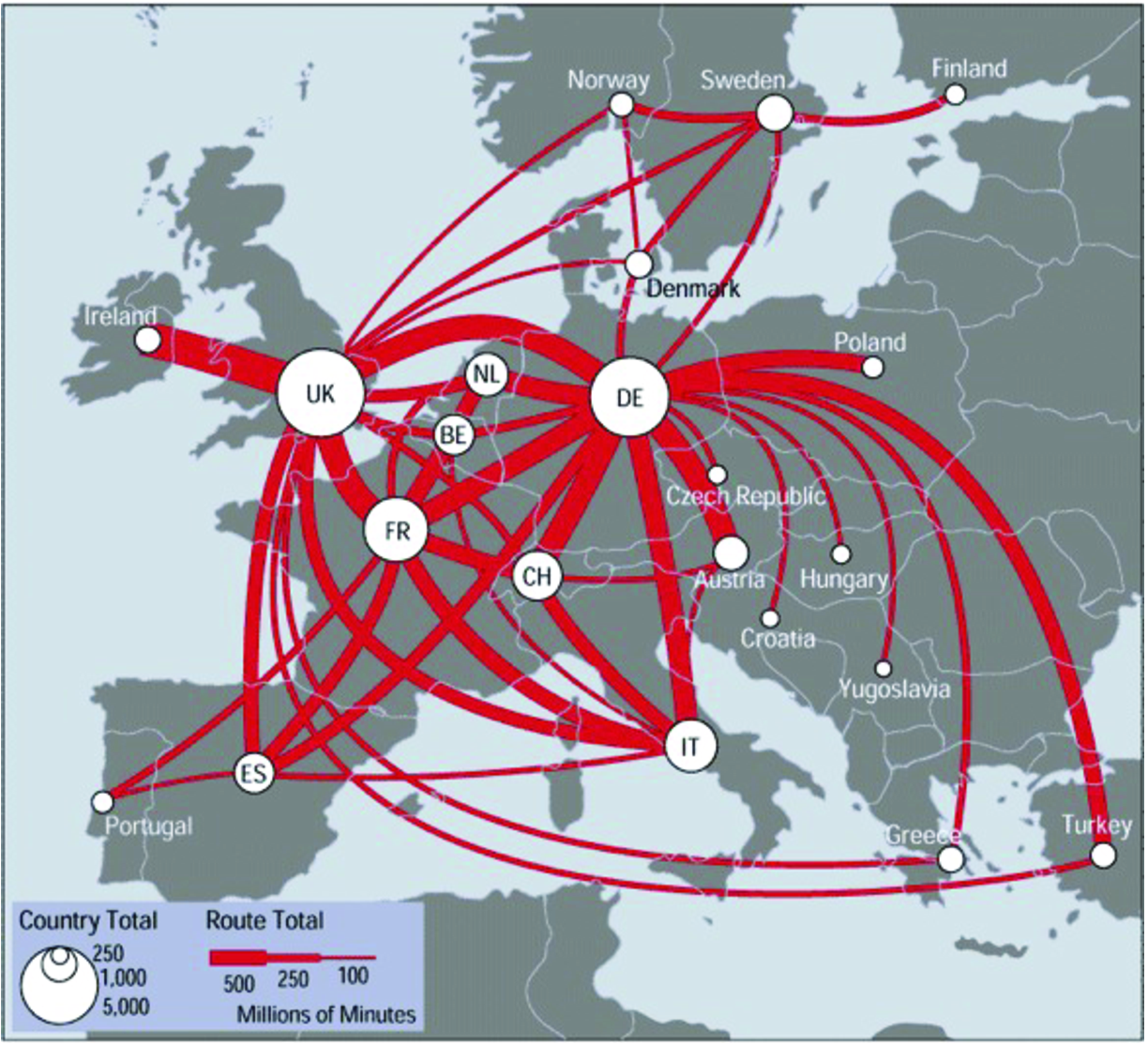

Line Width Map
Mappa.mundi.net TeleGeography's Traffic Flow Maps

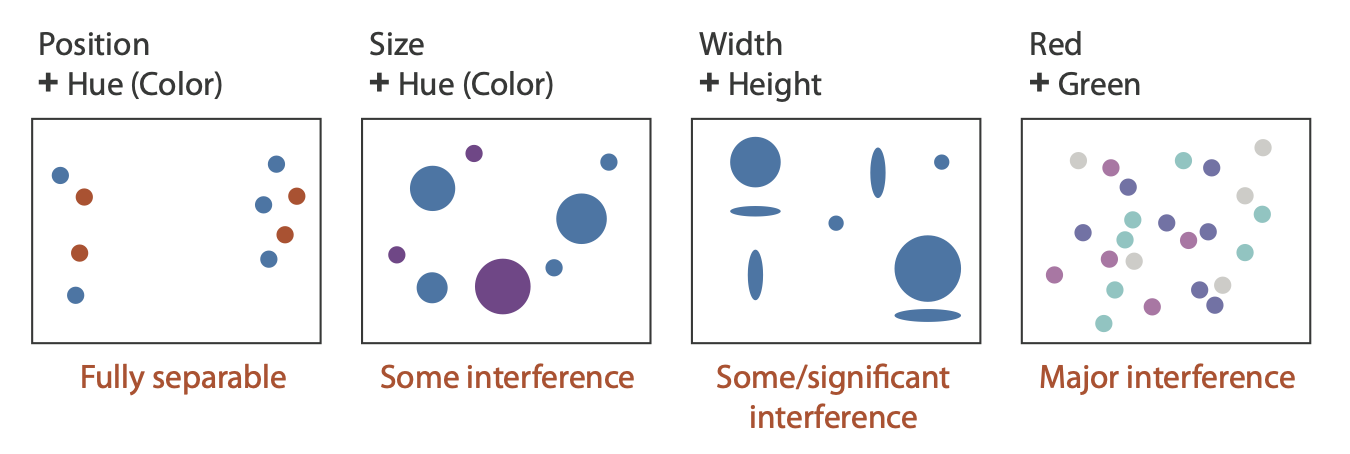

Separability

Separability

Popup

  • Find the odd ones.
  • Which ones pop up?

Grouping

  • Containment
  • Connection

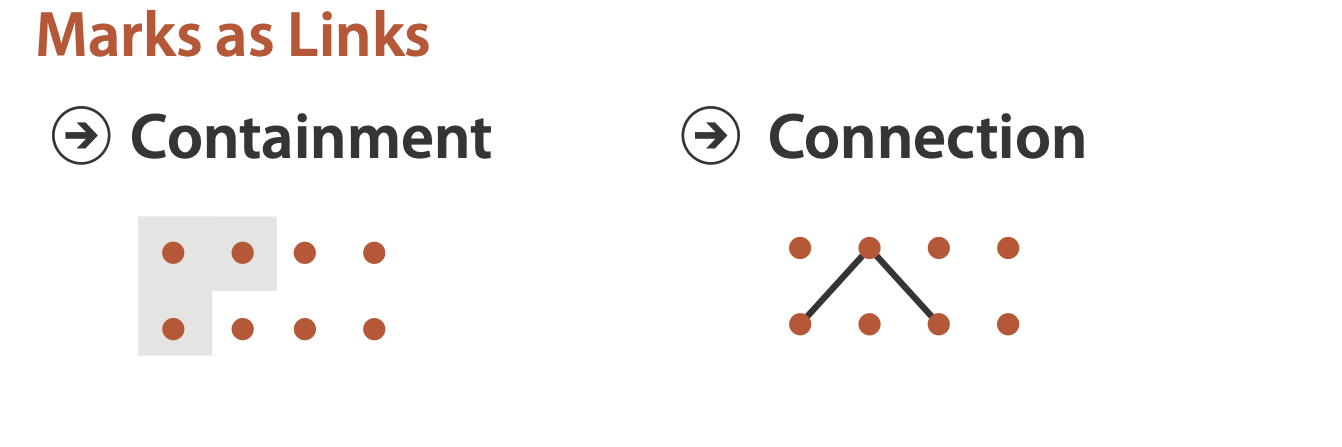

Containment and Connection

Containment

Similarity

Grouping (cont.)

  • Proximity 👉 use spatial separation
  • Similarity 👉 use categorical channels

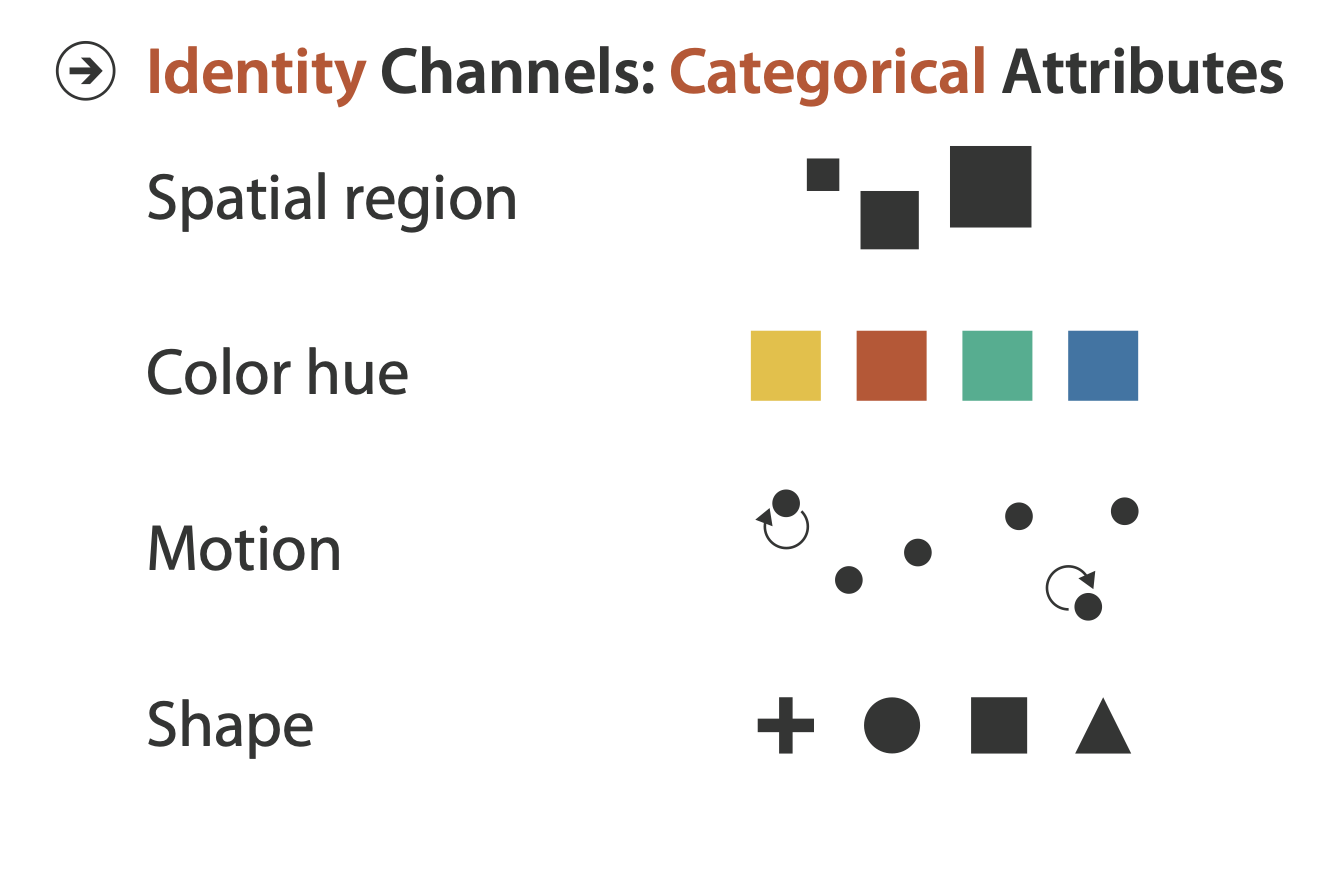

Identity Channels

Proximity and Similarity

Relative vs. Absolute Judgments

  • Perceptual 👉 mostly relative judgments, not absolute
  • That’s why accuracy increases with:
    • Common frame
    • Scale and alignment

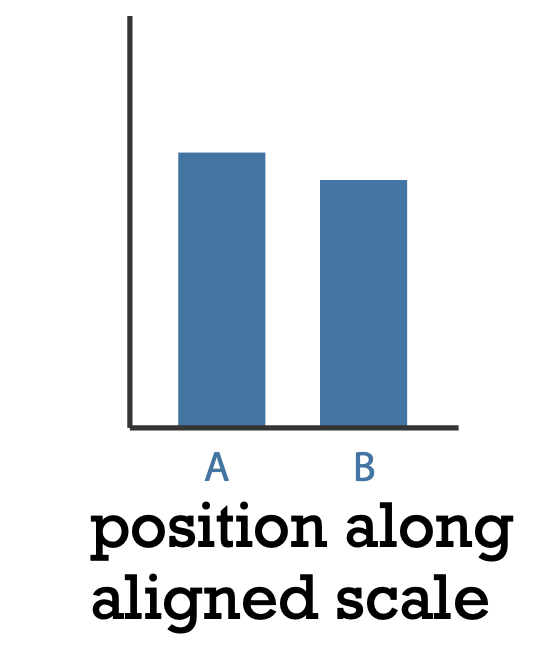

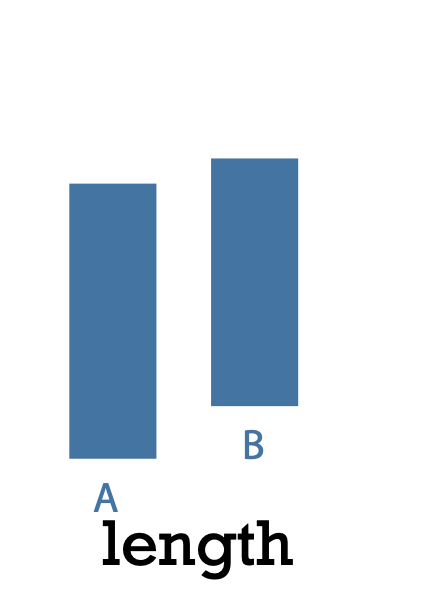

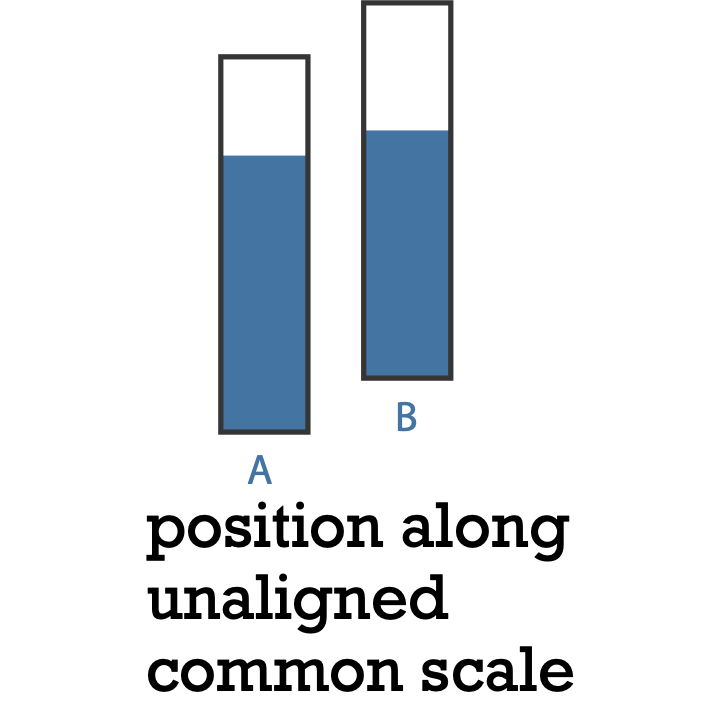

Not Aligned comparisonPosition along Unaligned common scaleAligned scale
after [Graphical Perception: Theory, Experimentation, and Application to the Development of Graphical Methods. Cleveland and McGill. Journ. American Statistical Association 79:387 (1984), 531–554.]

Weber's Law

The ratio of increment to background is constant.
  • Lift 2Kg
  • Then add 2Kg
  • Then add 20K
  • Then add 2K — would you feel them?
Popup is hard in a noisy visualization.
University Of California at Berkeley logo

Practice: Choose Your Path

Which Tool for the Job?

D3Vega-LiteAltairTableau

When D3

  • Interactivity
  • Custom-made visualizations
  • Performance
  • Differentiate
  • Force simulations
  • Advanced visualizations

When Vega-Lite

  • You need something quick...
  • ...Yet flexible
  • Web-based
  • Facets!
  • Coordinated views
  • Automate your charts

When Altair

  • You love Python
  • Same as Vega-Lite
  • Your model is in Python
  • Great syntactic sugar

When Tableau

  • Visual exploration
  • First pass through the data
  • Don't need complex charts
  • Don't mind Tableau branding
  • Can spend the budget

Choose Your Path

D3Vega-LiteAltairTableau

What We Learned

  • Marks
  • Channels
    • Ordered
    • Categorical
  • Expressivity
  • Effectivity
